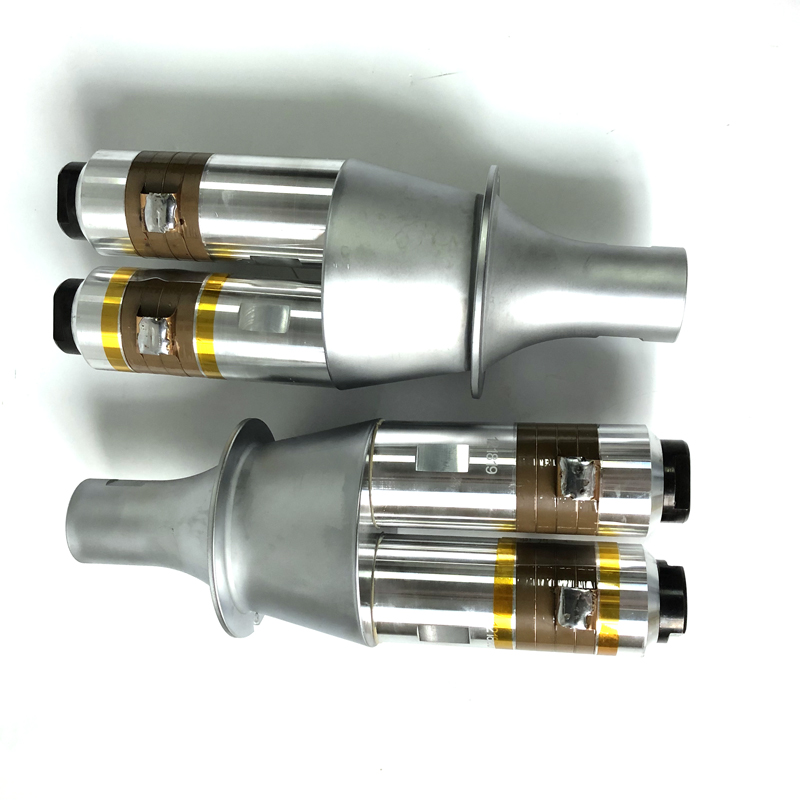

15kHz 4200W N95 Mask Machine Ultrasonic Welding Transducer Booster Horn for welding machine
Our transducer products are attached with the product performance parameter table, giving the capacitance and frequency of each transducer. The driving power supply should adjust the parameters of high voltage transformer, matching capacitor board, peak coil, frequency modulation coil, etc. according to the capacitance of transducer. Due to the sensitivity of inductance and capacitance, power amplifier board, choke coil and other peripheral circuits also affect the matching. And as the work goes on, the temperature of the transducer will rise, resulting in the capacitance will rise and the variation may be more than 50%.
If the capacitance can not be effectively matched off, it will cause a large phase difference of current and voltage in the loop, a low power factor, and a high virtual power. Look at the current is very large, but the transducer is weak and easy to heat, and the power device of the power supply is also easy to heat damage. In general, the electrode pieces (ears) of transducer are likely to crack or burn off due to this.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance(Ω) | Capacity(pF) | Input Power
(W) |
| ARS-HJHNQ-152500 P8 | 153 | M20×1.5 | 15 | 15 | 13000 | 2500 |
| ARS-HJHNQ-152000 P8 | 167 | M20×1.5 | 15 | 10 | 9500 | 2000 |
| ARS-HJHNQ-151500 P4 | 171 | M18×1.5 | 15 | 12 | 12500 | 1500 |
| ARS-HJHNQ-151800 P4 | 118 | M20×1.5 | 20 | 15 | 15000 | 1800 |
| ARS-HJHNQ-202000 P8 | 128 | M18×1 | 20 | 10 | 11000 | 2000 |
| ARS-HJHNQ-202000 P8 | 124 | M18×1.5 | 20 | 12 | 10000 | 1500 |
| ARS-HJHNQ-20700 P8 | 112 | 1/2-20 UNF | 20 | 15 | 9000 | 700 |
| ARS-HJHNQ-20900 P8 | 133 | 1/2-20 UNF | 20 | 15 | 10000 | 900 |
| ARS-HJHNQ-20600 P8 | 121 | M18×1.5 | 20 | 15 | 6000 | 600 |
| ARS-HJHNQ-30500 P8 | 77 | M10×1.5 | 30 | 5 | 5500 | 500 |
| ARS-HJHNQ-28200 P4 | 92.1 | M10×1 | 28 | 20 | 3000 | 200 |
| ARS-HJHNQ-28100 P8 | 91 | M8×1 | 28 | 25 | 2200 | 100 |
| ARS-HJHNQ-28250 P8 | 94 | 1/2-20 UNF | 28 | 20 | 4000 | 250 |
| ARS-HJHNQ-202000 P8 | 128 | 1/2-20 UNF | 20 | 10 | 20000 | 2000 |
| ARS-HJHNQ-201500 P8 | 124 | 1/2-20 UNF | 20 | 10 | 16000 | 1500 |
| ARS-HJHNQ-201300 P8 | 128 | 1/2-20 UNF | 20 | 10 | 12500 | 1300 |
| ARS-HJHNQ-201500 P8 | 132 | 1/2-20 UNF | 20 | 10 | 11000 | 1500 |
| ARS-HJHNQ-20900 P8 | 123 | 1/2-20 UNF | 20 | 10 | 9500 | 900 |
| ARS-HJHNQ-152000 P4 | 171 | M18×1.5 | 15 | 12 | 10000 | 2000 |
| ARS-HJHNQ-35100 P8 | 71 | M8×1 | 35 | 25 | 2200 | 100 |
| ARS-HJHNQ-38100 P8 | 66 | M8×1.25 | 38 | 40 | 1200 | 100 |
| ARS-HJHNQ-38200 P4 | 65 | M8×1 | 38 | 14 | 3300 | 200 |
15kHz 4200W N95 Mask Machine Ultrasonic Welding Transducer Booster Horn for welding machine
