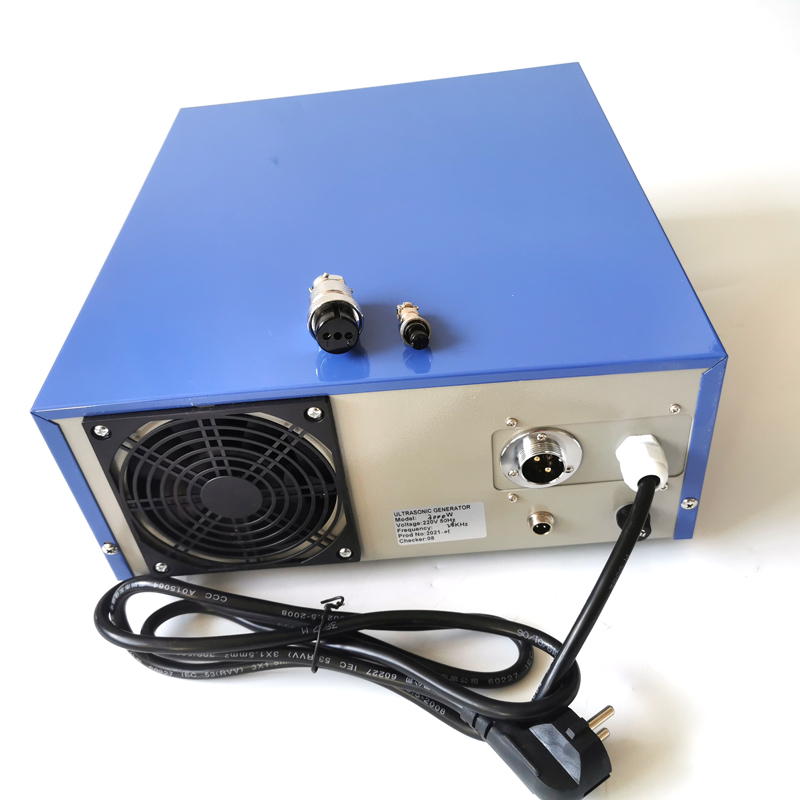

40khz 2000W Ultrasonic Frequency Generator For Cleaner

  • 1
  • 2

Brand Name : OURS ULTRASONIC

Model Number : ARS-QXDY

Certification : CE AND FCC

Place of Origin : SHENZHEN,CHINA

MOQ : 1set

Price : USD25-USD400

Payment Terms : T/T, Western Union,PAYPAL

Supply Ability : 10000set

Delivery Time : 1-3days

Packaging Details : CARTON BOX&FOAM

FR : 40KHZ

POWER : 2000W

Voltage : 110V 120Vor 220V 230V240V

TIMER : HAVE

Clean Type : Industrial Ultrasonic Cleaner

Machine Type : Digital Ultrasonic Generator

WARATEE : 1 YEAR

LEADTIME : 1-3DAYS

APPLICATION : ULTRASONIC INDUSTRY CLEANING

Contact Now

40khz Digital Industrial Ultrasonic frequency generator for cleaner

The digital ultrasonic generator is reliable in technology and can be used for continuous and large batch cleaning. It is suitable for dust and oil removal of mechanical parts, electronic parts, devices, etc

Main functions of digital ultrasonic generator:
(1) Adjustable output power: the starting point of output power is 20%, which can be adjusted in eight levels below, with green LED corresponding to 30%, 40%, 50%, 60%, 70%, 80%, 90% and 100%.
(2) Sweep frequency: can make the output power strong, even, stable.
(3) Alarm: over current, over heat protection, output under load alarm, output open circuit alarm.
(4) Remote control: provide four terminal remote fault display, on-off control

900W1000W1200W 40KHZ 28KHZ ULTRASONIC CLEANING MACHINE DRIVER CIRCUIT ULTRASONIC GENERATOR​

Type Power(W) Frequency (KHz) Transducer numbers Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-QXDY-300W 300W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 3-6 300x360x150
ARS-QXDY-600W 600W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 6-12 300x360x150
ARS-QXDY-900W 900W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 9-18 300x360x150
ARS-QXDY-1000W 1000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 10-20 300x360x150
ARS-QXDY-1200W 1200W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 12-24 300x360x150
ARS-QXDY-1500W 1500W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 15-30 300x360x150
ARS-QXDY-1800W 1800W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 18-36 300x360x150
ARS-QXDY-2000W 2000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 20-40 300x360x150
ARS-QXDY-2400W 2400W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 24-48 300x360x150
ARS-QXDY-3000W 3000W 17khz,20khz,25khz,28khz,33khz,40khz
Frequency is adjustable		 50-60 300x360x150
High Frequency 300W-1200W 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ
High Frequency 100W-300W 175-200KHZ

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request




Multi-frequency Ultrasonic cleaning generator

Type Power(W) Frequency (KHz) Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
ARS-SPDY-38/80 KHZ P 4 300W-1800W 38khz/80khz 300x360x150
ARS-SPDY-40/100KHZ P 4 300W-1800W 40khz/100khz 300x360x150
ARS-TPDY-28/83/130 KHZ P4 300W-1200W 28khz/83khz/130khz 300x360x150
ARS-TPDY-25/45/80KHZ P4 300W-1200W 25khz/45khz/80khz 300x360x150
ARS-TPDY-33/89/135KHZ P4 300W-1200W 33khz/89khz/135khz 300x360x150
ARS-TPDY-28/41/123KHZ P4 300W-1200W 28khz/41khz123khz 300x360x150
ARS-TPDY-40/80/120K 300W-1200W 40khz/80khz/120khz 300x360x150
ARS-FPDY-28/60/70/84KHZP4(quadruple frequency)60W70K 300W-1200W 28khz/60khz/70khz/84khz 300x360x150
ARS--FPDY-40/77/100/170KHZ P4 300W-1200W 40khz/77khz/100khz/170khz 300x360x150

Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request
