2000W 28khz Digital Ultrasonic Transducer Cleaning Generator

28khz Digital ultrasonic transducer cleaning generator

Digital ultrasonic generator is a kind of conversion device that converts electric energy into ultrasonic energy and provides energy to ultrasonic transducer, also known as ultrasonic power supply. The series of ultrasonic generators produced by our company are based on domestic well-known experts and professors, absorbed advanced experience at home and abroad, and assembled and developed with original imported high-power devices.

Excellent performance of digital ultrasonic generator:
1. Full digital frequency synthesizer, up to 0.01khz frequency regulation, to ensure accurate frequency; up to 0.01A current regulation resolution.
2. Automatic broadband scanning frequency, can select different band width, to eliminate standing wave, improve ultrasonic energy distribution, eliminate cleaning blind area
3. The built-in frequency tracking PID controller can automatically track the temperature of the water tank, clean the load, and adjust the frequency automatically all the time to ensure that the transducer runs in the best resonance state at all times.
4. Built in power tracking PID controller, without user intervention, ensures accurate resonant frequency and stable output power.
5. Optional frequency 20khz-60khz, 60-100KHz, 100khz-130khz, 130khz-200khz four series, perfect matching the whole series of ultrasonic transducers.
6. Over current, under voltage, over voltage, temperature, a variety of protection measures to ensure long-term reliable operation of the equipment. Fast over-current protection, 10ns can quickly start protection.

900W1000W1200W 40KHZ 28KHZ ULTRASONIC CLEANING MACHINE DRIVER CIRCUIT ULTRASONIC GENERATOR​



Multi-frequency Ultrasonic cleaning generator

28khz Digital ultrasonic transducer cleaning generator

2000W Digital Ultrasonic Transducer

28khz Digital Ultrasonic Transducer

240V Ultrasonic Generator Cleaning Generator

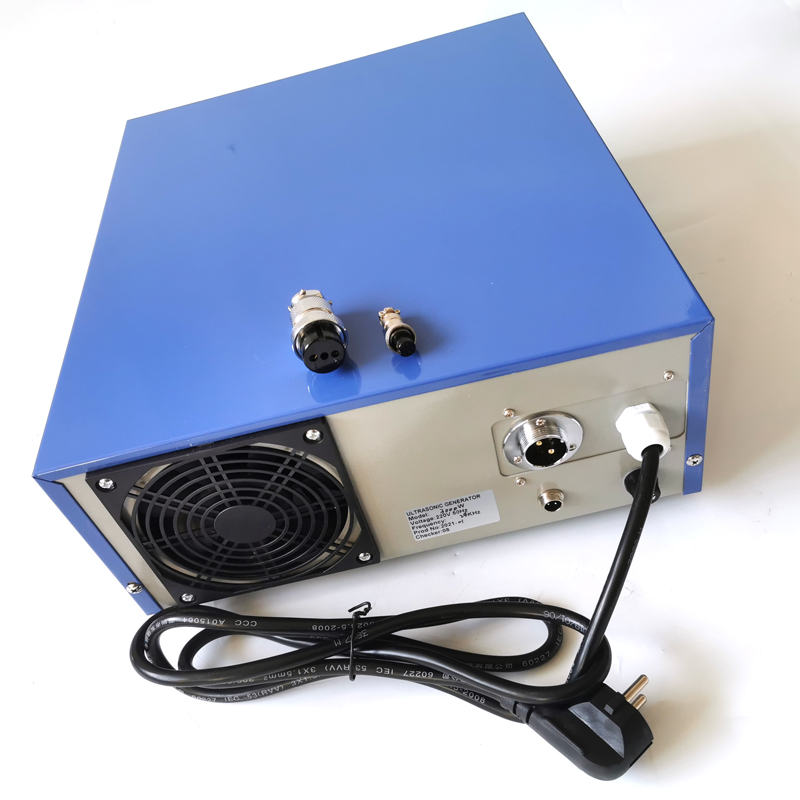

2000W 28khz Digital Ultrasonic Transducer Cleaning Generator Images
