Brand Name : oursultrasonics
Model Number : ARS-QXDY
Certification : ce
Place of Origin : china
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 100000
Delivery Time : 3days
Packaging Details : Professional packaging
Voltage : 220V/110V
Power(w) : 200-3000w
Condition : New
Dimension(l*w*h) : 365*232*240
Warranty : 1 Year
Application : Liquid
Frequency : 20kHz-40kHz
Usage : ultrasonic homogenizer,Laboratory Mixing,Mixing disperser Liquid,liquid treatment all kinds of sonochemistry

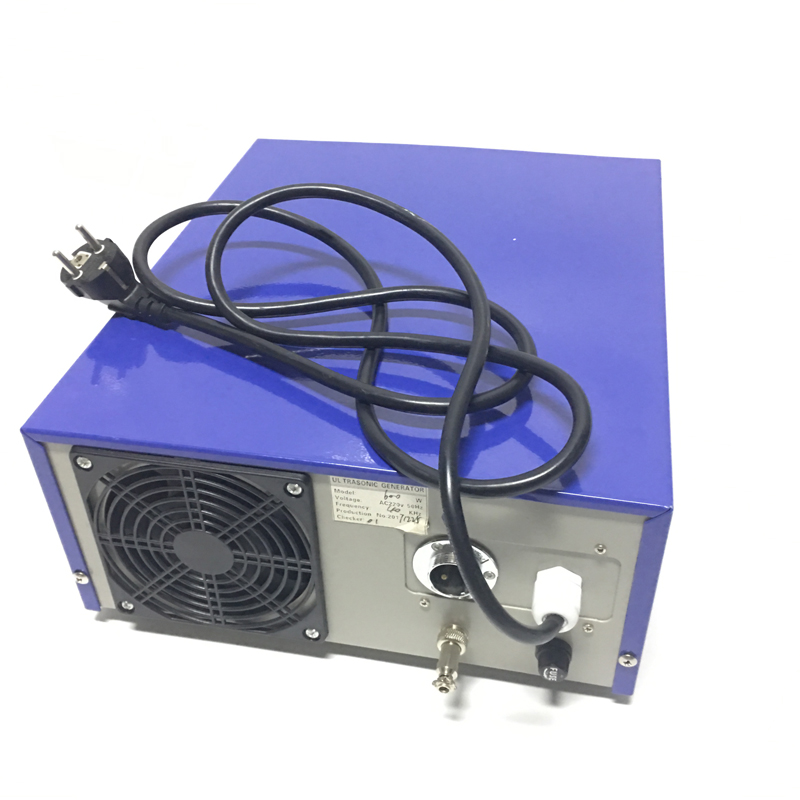

ultrasonic sweep generator module for industry cleaning machine with transducer 28khz/40khz 2000Watt
Function of ultrasonic generator:
1. Short circuit protection function;
2. Over current and over voltage protection: in addition to setting protection current during machine adjustment, set working protection current at the same time to prevent machine damage caused by over current or voltage instability.
3. Fully enclosed design of the case, with anti-corrosion function of the circuit;
4. Newly added protection function of head falling off;
5. It has special over temperature protection function, which can automatically turn off and recuperate when the temperature exceeds 65 degrees, so as to prevent the main board from being damaged due to over temperature.
6. The output effective power is over 98%.
7. All important parts are imported electronic components.
Type | Power(W) | Frequency (KHz) | Transducer numbers | Size |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system | ||||
ARS-QXDY-300W | 300W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 3-6 | 300x360x150 |
ARS-QXDY-600W | 600W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 6-12 | 300x360x150 |
ARS-QXDY-900W | 900W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 9-18 | 300x360x150 |
ARS-QXDY-1000W | 1000W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 10-20 | 300x360x150 |
ARS-QXDY-1200W | 1200W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 12-24 | 300x360x150 |
ARS-QXDY-1500W | 1500W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 15-30 | 300x360x150 |
ARS-QXDY-1800W | 1800W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 18-36 | 300x360x150 |
ARS-QXDY-2000W | 2000W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 20-40 | 300x360x150 |
ARS-QXDY-2400W | 2400W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 24-48 | 300x360x150 |
ARS-QXDY-3000W | 3000W | 17khz,20khz,25khz,28khz,33khz,40khz Frequency is adjustable | 50-60 | 300x360x150 |
High Frequency | 300W-1200W | 54KHZ,60KHZ,68KHZ,70KHZ,80KHZ,100KHZ,120KHZ,135KHZ | ||
High Frequency | 100W-300W | 175-200KHZ | ||
Above ultrasonic generator 110V-120V or 220V-240V are available,contact with us during your order with detail request |
ultrasonic sweep generator module for industry cleaning machine with transducer 28khz/40khz 2000Watt
![]() |
Sweep Ultrasonic Cleaner Generator 28khz/40khz 2000 Watt For Industry Cleaning Machine Images |
