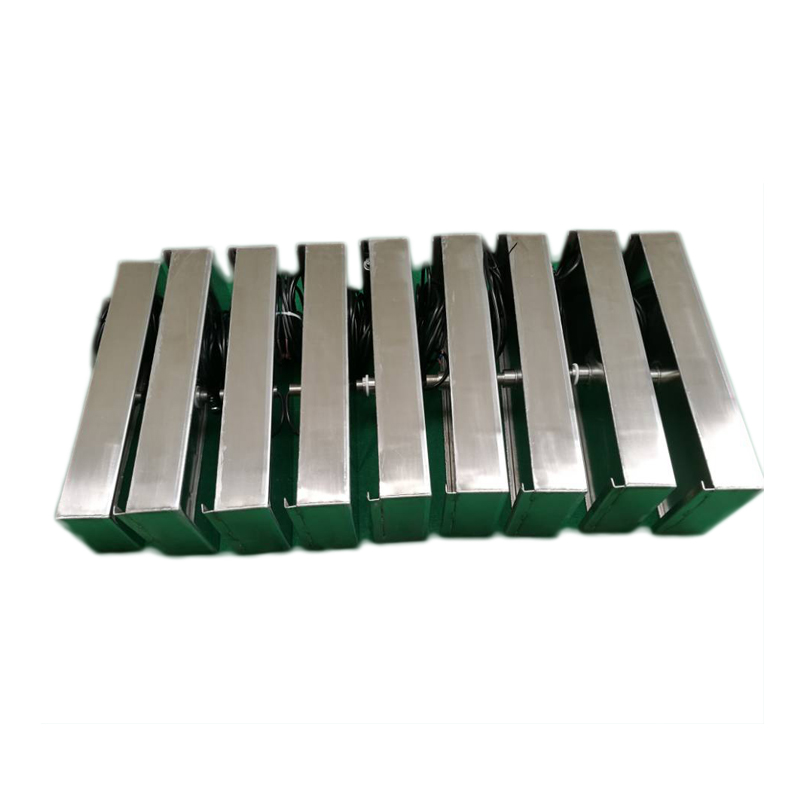

Submersible Ultrasonic Component Cleaning Machine33khz/40khz
Performance features:
With high quality and high performance imported transducer and unique ultrasonic generator, the cleaning power is strong and the performance is stable.
2. It is made of high-quality 304 / 316L (2.5mm) stainless steel plate, with hard chromium plating on the surface, acid and alkali resistance, good sealing performance, beautiful appearance and convenient maintenance.
3. The ultrasonic vibration plate is designed to match the harmonic vibration of the ultrasonic generator, which is convenient to use and easy to maintain.
4. The ultrasonic power is stable and equipped with independent controller (electric box) to facilitate the equipment movement.
Applicable scope of ultrasonic vibration plate
Cleaning electroplating parts, pre plating cleaning, clock parts, hardware and mechanical parts, polyester filter element, semiconductor silicon wafer, tools, lenses, spectacle frame, jewelry, glassware, ceramic ball mill, etc
| Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
| ARS-ZBH300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
| ARS-ZBH600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
| ARS-ZBH1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
| ARS-ZBH1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
| ARS-ZBH1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
| ARS-ZBH1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
| ARS-ZBH2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
| ARS-ZBH2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
| ARS-ZBH3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
| ARS-ZBH5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
| Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
