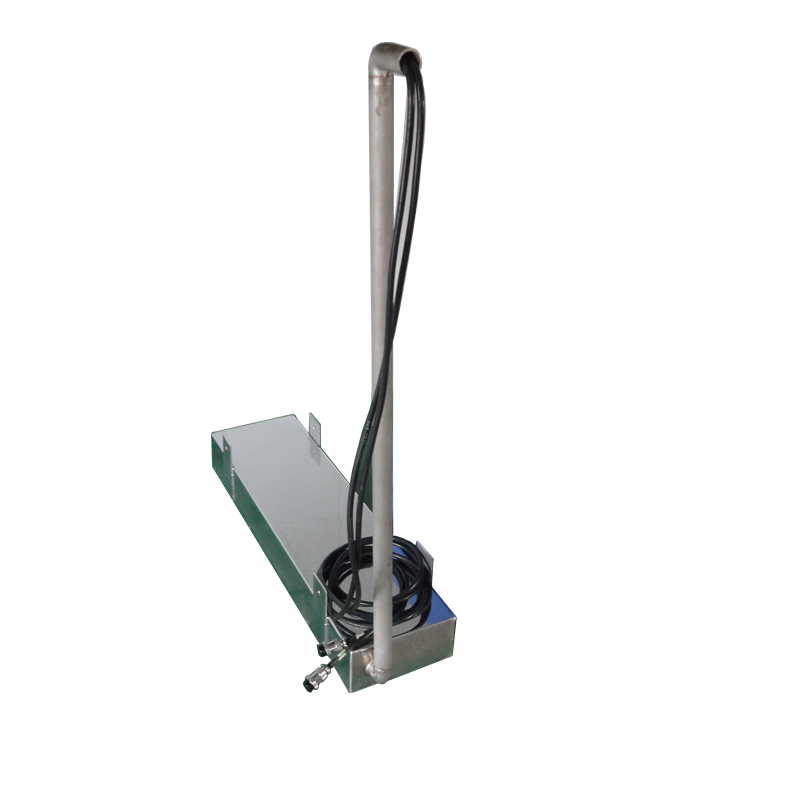

Immersible Ultrasonic Vibration Plate for industry cleaning 40khz
1. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate is a flexible ultrasonic cleaning device, which is composed of ultrasonic transducer, ultrasonic vibration box and ultrasonic generator, which is bonded and sealed in the stainless steel box and put into the existing cleaning container of the customer; 2. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate is composed of ultrasonic transducer, ultrasonic vibration box and ultrasonic generator 3. Application fields of 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate: cleaning before plating of electronic parts, electroplating parts, clock parts, hardware mechanical parts, valves, flanges, pipe fittings, auto parts, watch belts, spinneret filter elements, polyester filter elements, semiconductor silicon chips, tools, optics, lenses, spectacle frames, jewelry, glassware, etc/ Descaling / dedusting cleaning 4. Add vibration plate device in the existing cleaning tank, refit it into ultrasonic cleaning machine or increase the power of the original ultrasonic cleaning machine, which can save the cost of customers Features of Juhe brand 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate: 1. The thickened corrosion-resistant ultrasonic vibration plate of 316 stainless steel adopts a split structure, and the high-frequency connection with a socket is used between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance. 2. The thickened corrosion-resistant ultrasonic vibration plate of 316 stainless steel is matched with imported high-Q high-power ultrasonic transducer with strong power and obvious cleaning effect 3. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate is made of 2.0 ~ 2.5mm-thick high-quality 304 stainless steel, which is acid and alkali resistant, beautiful and durable; 4. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate has excellent water-proof, high-temperature resistance and long service life; 5. 316 stainless steel thickened corrosion-resistant ultrasonic vibration plate can be made into three types: bottom shock type, side shock type and top shock type, which can be installed flexibly according to needs To meet different cleaning requirements.
| Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
| ARS-ZBH300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
| ARS-ZBH600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
| ARS-ZBH1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
| ARS-ZBH1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
| ARS-ZBH1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
| ARS-ZBH1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
| ARS-ZBH2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
| ARS-ZBH2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
| ARS-ZBH3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
| ARS-ZBH5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
| Above are single frequency ultrasonic immersible transducer pack OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
