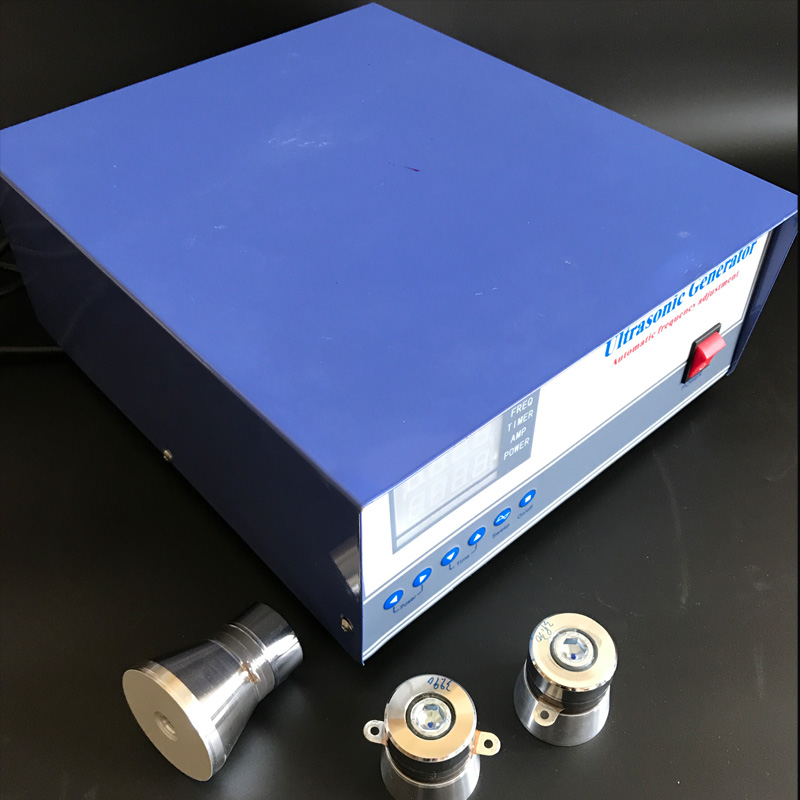

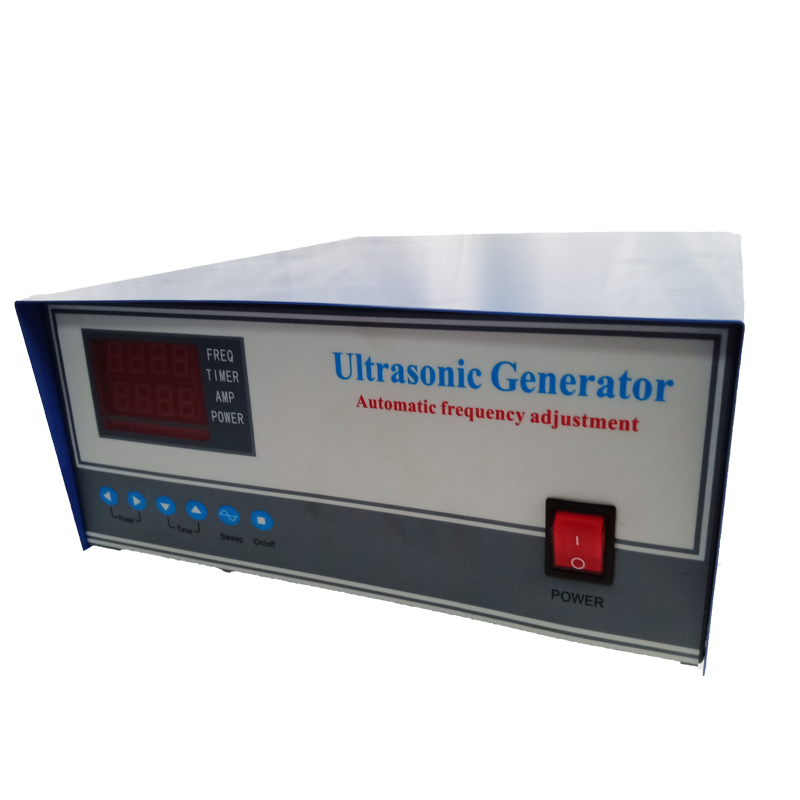

20khz 1000W Stainless Steel Digital Ultrasonic Generator For Dishwasher

20khz/1000W Digital ultrasonic Cleaning generator for Automatic Motorcycle Oil Degreasing Bath Golf Ball Dishwasher

General knowledge of ultrasonic cleaning
First, the power ultrasonic oscillator must have a certain input power to produce cavitation effect, but the power density (power per unit area) and cleaning effect is not directly proportional to the power density is too high but the cleaning effect will decline, and will accelerate the cavitation corrosion of the cleaning tank surface.
2. The higher the cleanliness of frequency cleaning, the higher the cleaning frequency is required, but the higher the frequency, the higher the power density is required, that is, the higher the power is needed to achieve the same cleaning effect frequency than the lower frequency.
3. The optimum cleaning water temperature of water-based solution is 40-50 C, which is the most favorable for cavitation effect. Above this temperature because the steam pressure in the water will increase will reduce the cleaning effect, and excessive water temperature will have adverse consequences for the cleaning machine, shorten the life of the cleaning machine, the general water temperature should not exceed 80%.
Fourthly, the cleaning effect of the cleaning fluid cleaning machine is very limited when only clean water is used as the cleaning fluid (such as washing machine without washing powder), adding the appropriate cleaning agent will greatly improve the cleaning effect, and it is recommended to make certain pretreatment for the heavy oily objects.
5. The cleaning basket can not directly press on the surface where the ultrasonic wave occurs for the heavier parts, which not only reduces the cleaning effect, but also damages the cleaning machine if the energy of the vibrator can not be released. The mesh of the cleaning basket is too small to attenuate the cleaning wave, which will affect the cleaning effect. The mesh should generally be larger than 1 cm * 1 cm.
6. Cleaning surface due to the linear transmission of ultrasonic in water, so the cleaning effect will decline when the cleaning surface is obstructed, for a more cleaning pieces, it is best to leave space between them, so that ultrasonic can reach the cleaning surface, or need to flip the cleaning parts.
1, size and power size can be designed according to user needs.
2, according to the actual demand, the ultrasonic box will be discharged flexibly.
3, made of stainless steel, acid and alkali, durable.
4, automatic heating and thermostat device can be configured.
5, continuous production, suitable for batch operations.
6, provide series of cleaning technology support.

Widely used in a large number of cleaning occasions, because the standard cleaning equipment can not meet, so the use of flexible and unlimited assembly of vibration box, forming a variety of cleaning occasions to meet user needs, according to the actual size of production, and provide a complete set of cleaning process.

20khz/1000W Digital ultrasonic Cleaning generator for Automatic Motorcycle Oil Degreasing Bath Golf Ball Dishwasher

high frequency noise generator

ultrasonic cleaner generator

20khz 1000W Stainless Steel Digital Ultrasonic Generator For Dishwasher Images
